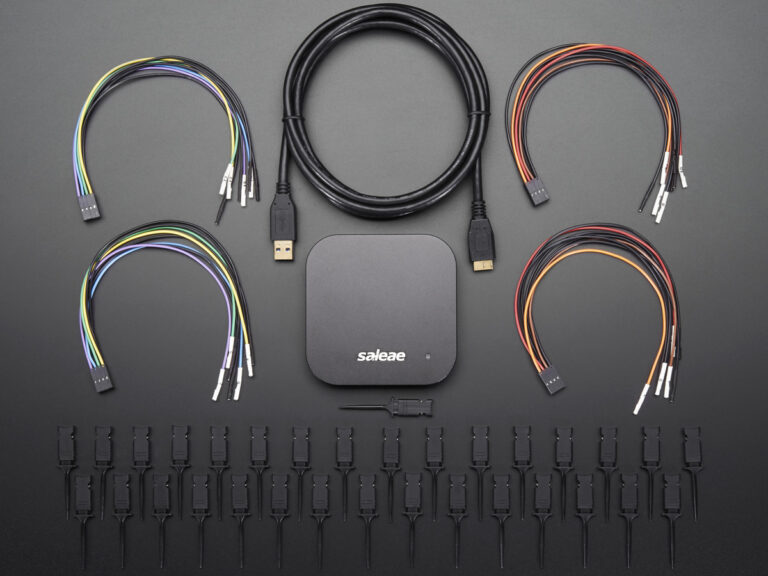

The Saleae Logic Pro 16 USB Logic Analyzer is a 16
channel logic analyzer with each input dual
purposed for analog data recording. The device
connects to a PC over USB and uses the Saleae
Logic Software to record and view digital and
analog signals.
A logic analyzer is a debugging tool used to record
and view digital signals. It operates by sampling a
digital input connected to a device under test
(DUT) at a high sample rate. These samples are
recorded to a sample buffer, and at the end of the
capture, the buffer is displayed in the software for
review.
Logic analyzers are great for debugging embedded
applications. In the most common case, a
developer working on firmware for a
microcontroller will write code to communicate
with another component, possibly using protocols
like serial, I2C, or SPI. To verify the functionality or
to diagnose errors in the firmware, a logic analyzer
is connected to the digital IO used for
communication and records the activity during
testing. The recording is then shown on the display
so the user can view the actual behavior of the
firmware, and compare that with the expected
behavior to narrow down and identity the source
of the issue – or verify that the operation is
correct

FEATURES
• Powerful, Easy-to-use Software
• Deep Sample Buffers
• Highly Portable, USB Attached
• 24 Included Protocol Analyzers
• Automation API
• Custom Protocol Decoder Plugin API
• Edge and Pulse Width Triggering
• Protocol Result Filter and Search
• Measurements, Bookmarks and Timing
Markers
• Four Data Export Formats: CSV, Binary, VCD
and MATLAB
• Cross Platform Windows, Linux, and OSX
APPLICATIONS
• Firmware Debugging
• FPGA Debugging
• Functional Verification
• Performance Profiling
• Reverse Engineering
• Protocol Decoding
• Data Logging
KEY SPECIFICATIONS
• Sixteen Digital Channels
• 500 MSPS Digital Sampling (max)
• 100 MHz Max Digital Bandwidth
• Sixteen Analog Channels
• 50 MSPS Analog Sampling (max)
• 5 MHz Analog Bandwidth
• Recording Length Limited by Available RAM
and Density of Recorded Data
• RGB LED, Customizable 24 bit Color
• USB 3.0 Super Speed
